LxTools Shared Libraries

A collection of shared UI components and utility libraries for the LxTools application suite.

Features

• Custom File Dialog (CustomFileDialog): A modern, themeable file selection dialog.
• Message Dialogs (MessageDialog): Highly customizable, theme-aware popup dialogs for alerts, questions, and info messages.
• Animated Icons (AnimatedIcon): A custom Tkinter Canvas widget supporting smooth, anti-aliased (Pillow-based) animations (spinners, arcs, pulses, etc.) with native HiDPI support.
• Common Tools: Reusable utility functions for logging, configuration management, and system integration.

Animated Icon Demo

Here is a quick example of how to use the AnimatedIcon for both dark and light themes.

import tkinter as tk
from shared_libs.animated_icon import AnimatedIcon

root = tk.Tk()
root.title("Animated Icon Demo")
root.geometry("450x250")
root.configure(bg="#2d2d2d")  # Dark background

animations = ["line", "double_arc", "counter_arc", "blink"]

# Example 1: Dark Theme Spinners
lbl_dark = tk.Label(root, text="Dark Theme Animations:", bg="#2d2d2d", fg="white", font=("Ubuntu", 10, "bold"))
lbl_dark.pack(pady=(20, 5))

frame_dark_icons = tk.Frame(root, bg="#2d2d2d")
frame_dark_icons.pack(pady=(0,10))

for anim in animations:
    icon = AnimatedIcon(
        frame_dark_icons,
        width=64, height=64,
        animation_type=anim,
        color="#3498db",           # Base color
        highlight_color="#ffffff", # Highlight/Spinner color
        use_pillow=True,
        bg="#2d2d2d"
    )
    icon.pack(side="left", padx=15)
    icon.start()

# Example 2: Light Theme Spinners
frame_light = tk.Frame(root, bg="#f0f0f0", pady=20)
frame_light.pack(fill="both", expand=True, side="bottom")

lbl_light = tk.Label(frame_light, text="Light Theme Animations:", bg="#f0f0f0", fg="black", font=("Ubuntu", 10, "bold"))
lbl_light.pack(pady=5)

frame_light_icons = tk.Frame(frame_light, bg="#f0f0f0")
frame_light_icons.pack()

for anim in animations:
    icon = AnimatedIcon(
        frame_light_icons,
        width=64, height=64,
        animation_type=anim,
        color="#bdc3c7",           # Base color
        highlight_color="#2c3e50", # Highlight/Spinner color
        use_pillow=True,
        bg="#f0f0f0"
    )
    icon.pack(side="left", padx=15)
    icon.start()

root.mainloop()

Screenshots

📸 Show Screenshots (Click here)

Custom File Dialog

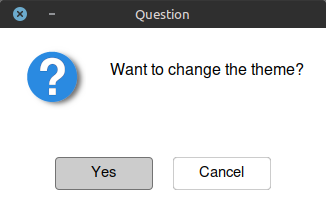

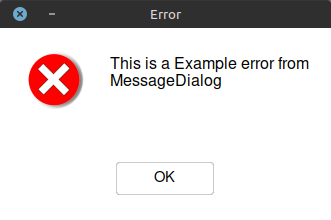

Message Dialogs & Animated Icons

Installation

This library is a core dependency for the LxTools suite and is typically installed automatically. If you need to install it manually from the repository:

sudo apt update
sudo apt install python3-shared-libs
